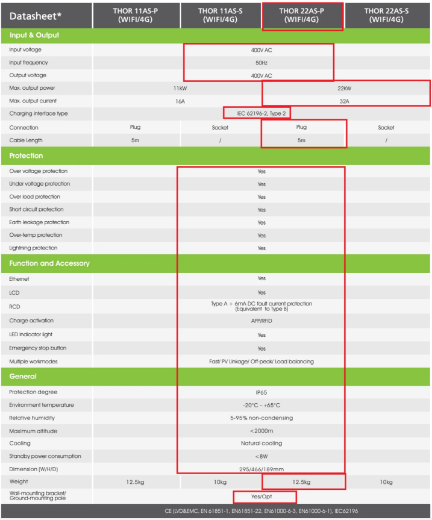

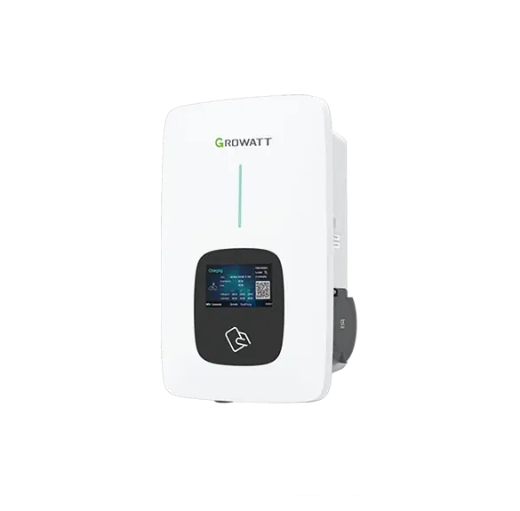

The Growatt THOR 22AS-S/P is a three-phase smart EV charger that can be easily integrated into an existing or new-installed solar system. It allows you to charge your EV with 100% renewable energy by using the surplus solar power from your PV system. It is compatible with all branded EVs and supports three different charging modes: Fast Mode, Off-Peak Mode, and PV Linkage Mode. You can control and monitor the charger through the ShinePhone app, which offers features such as remote control, smart scheduling, and voice control. The charger has a maximum output power of 11 or 22 kW, depending on the model, and a protection degree of IP65, which means it can be used indoors or outdoors. It also has a built-in type A+ 6 mA DC fault protection and a smart load balancing function to ensure safety and reliability.
One of the benefits of using a three-phase power supply for the charger is that it can deliver more power to your EV in a shorter time, compared to a single-phase power supply. This means you can reduce the charging time and increase the driving range of your EV. Another benefit is that a three-phase power supply can balance the load across three wires, instead of one, which reduces the risk of overloading and power outages. A three-phase power supply also improves the efficiency and stability of the charger, as it reduces the voltage fluctuations and harmonics that may affect the performance of the charger and the EV.

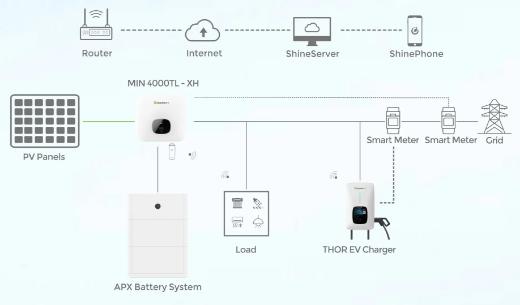

Please note! this EV charger works optionally also with the GROWATT SMART ENERGY METER TPM where the Smart Meter measure the current flows and in case of energy export from PV system (eg. to the city) can start automatically the EV charging process over the EV charger, for best optimization of energy production and consumption (and minimize the energy export to the grid). For best performance the optimal PV system size is about 6kW (minimum) then if 2kW energy export per phase, the EV charger (can) start automatically the EV charging process with 6kW (2kW per phase). The Growatt Smart Meter TPM is connected with the THOR EV Charger with 2 lines A+B (2-way communication cable). The system can be set-up in the Growatt APP ShinePhone.
We offer full range of the GROWATT EV Charger for institutional customers, from single-phase 7 to 22kW 3-phases charger
