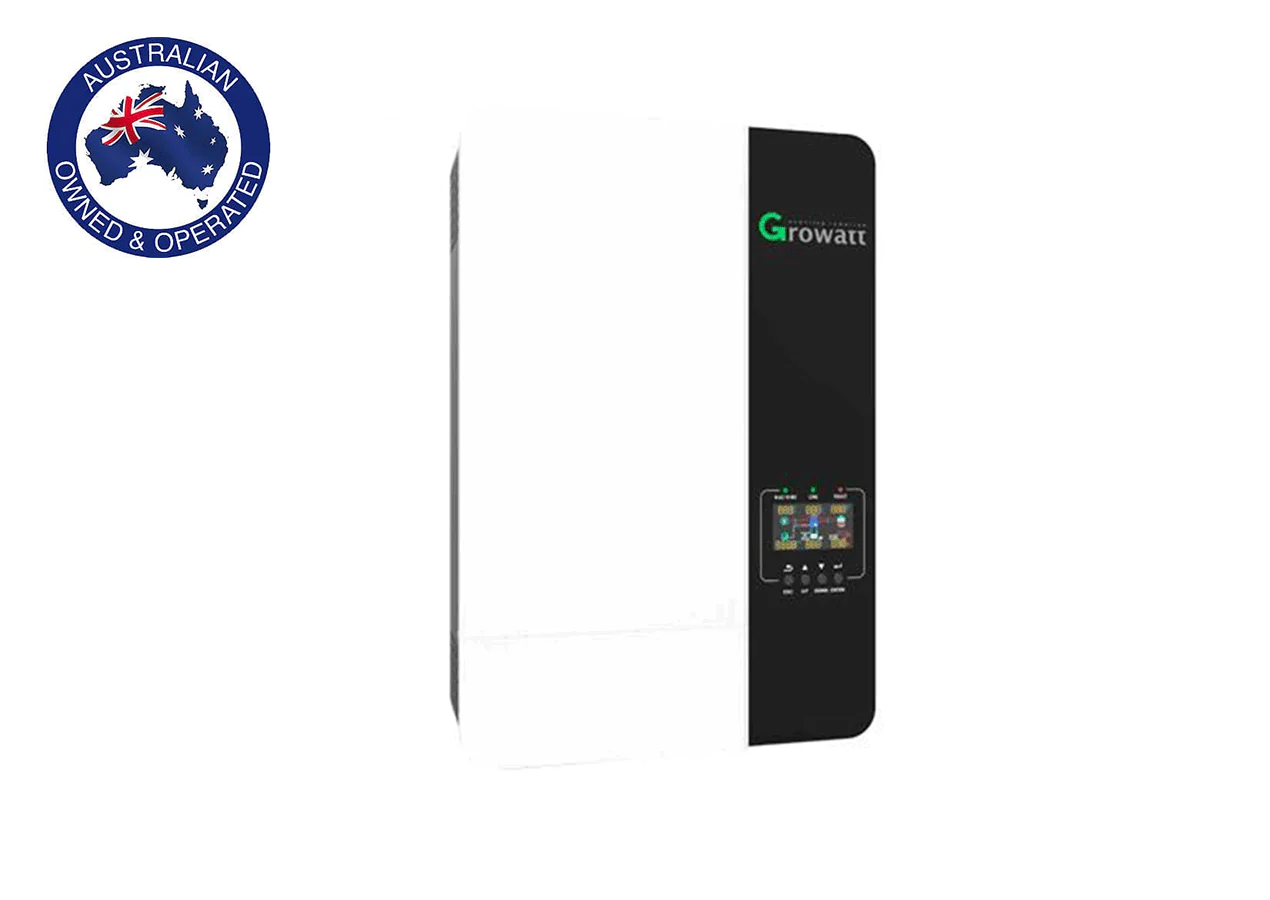

This inverter is perfect for off-grid backup power and self-consumption applications. It can work with or without batteries.

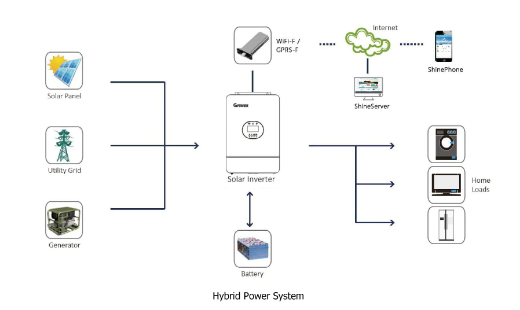

The whole system also needs other devices to achieve complete running such as PV modules, generators, or utility grids. Please consult with your system integrator for other possible system architectures depending on your requirements. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or the website anytime anywhere.
Installation Introduction:
https://www.youtube.com/watch?v=6RbI8GwFBYI&feature=youtu.be

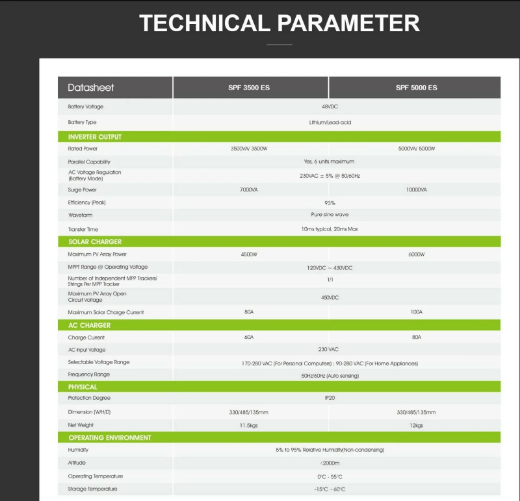

Products specifications
| Warranty | 2 years |
| Battery | |
| Battery Voltage | 48V DC |
| Inverter Output | |
| Rated Power | 3500W |
| Parallel Capacity | Yes - 6 Units Max |
| Surge Power | 7000W |
| Efficiency Peak | 93% |
| Solar Charger | |
| Maximum PV Array Power | 4500W |
| MPPT Range @ Operating Voltage | 120VDC ~ 430VDC |
| Max Solar Charge Current | 80A |
| AC Charger | |
| AC Charge Current | 60A |
| Physical | |
| Protection Degree | IP20 |
| Dimensions (W/H/D) | 330/485/135mm |
| Net Weight (Kgs) | 11.5 |
