Streamlining Your Growatt ES6000 System Setup: Leveraging the Neogrid Voltage Drop Calculator and Wire Chart

Building an efficient and dependable solar energy system hinges on how effectively you connect your Growatt ES6000 inverter with a 48V 100Ah rack battery. Neogrid has taken strides to simplify this process, offering a user-friendly voltage drop calculator and a comprehensive wire chart on their website. This guide will walk you through the steps of utilizing these invaluable resources to ensure peak performance and safety for your solar energy setup.

Step 1: Navigating to the Neogrid Voltage Drop Calculator: Kickstart your system configuration by heading to the Neogrid website's Voltage Drop Calculator: Neogrid Voltage Drop Calculator. This tool will play a pivotal role in selecting the right wire gauge for linking your Growatt ES6000 inverter to your 48V 100Ah rack battery.

Step 2: Inputting Essential System Details:

1. Voltage Drop Limit: Start by defining your acceptable voltage drop threshold. The standard recommendation is to aim for a 3% or lower voltage drop.
2. Distance: Specify the distance spanning your Growatt ES6000 inverter and the 48V 100Ah rack battery in metres.
3. Current: Enter the maximum current (measured in amperage) that your system is expected to draw. This detail can usually be found within the product specifications.

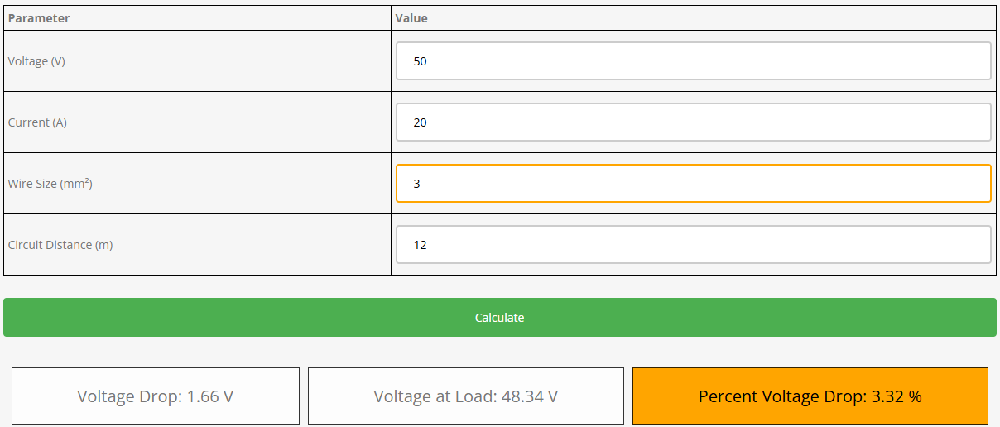

Step 3: Using the Recommendation: Upon inputting your data, the Neogrid voltage drop calculator will alert you to any issues. The calculator's algorithm takes into account your chosen voltage drop threshold, distance, and current, yielding a wire gauge that aligns with your requirements. If thedrop is more than 3% but below 5% the calculator will show the result with an orange and outline the wire size that you planned to use. If the voltage drop is over 5% then your result will show in a red box indicating that you should not go ahead with your proposed parameters.

Step 4: Tapping into the Neogrid Wire Chart: In tandem with the voltage drop calculator, Neogrid offers a convenient wire chart, accessible here: Neogrid Wire Chart. This visual guide presents the recommended wire gauge based on your system's maximum current and distance. Locate the recommended gauge from the calculator on this chart to confirm its appropriateness for your needs.

Step 5: Making the Connections:

1. Inverter to Battery Link: Armed with the wire gauge recommendation gleaned from the Neogrid calculator and wire chart, forge a secure connection between your Growatt ES6000 inverter and the 48V 100Ah rack battery. Ensure accurate stripping, termination, and connection of the wires. Depend on high-quality connectors to yield corrosion-resistant and reliable links.

2. Solar Power Integration: Integrate your solar panels with the inverter in accordance with the manufacturer's guidelines. Prudent wiring and connectors are key to optimizing your solar panels' performance.

3. Grid Power Association: As you connect the inverter to the primary electrical panel, adhere to local electrical codes and safety protocols to successfully integrate grid power. Always use a qualified electrician for this step.

Neogrid's offerings – the Voltage Drop Calculator and Wire Chart – simplify the process of linking your Growatt ES6000 inverter with a 48V 100Ah rack battery. Harness these tools to accurately determine the ideal wire gauge, guaranteeing stellar performance and safety for your solar energy setup. Above all, prioritize compliance with electrical codes and safety standards as you make connections, thus shaping a sturdy and efficient solar energy solution that caters to your unique requirements.
