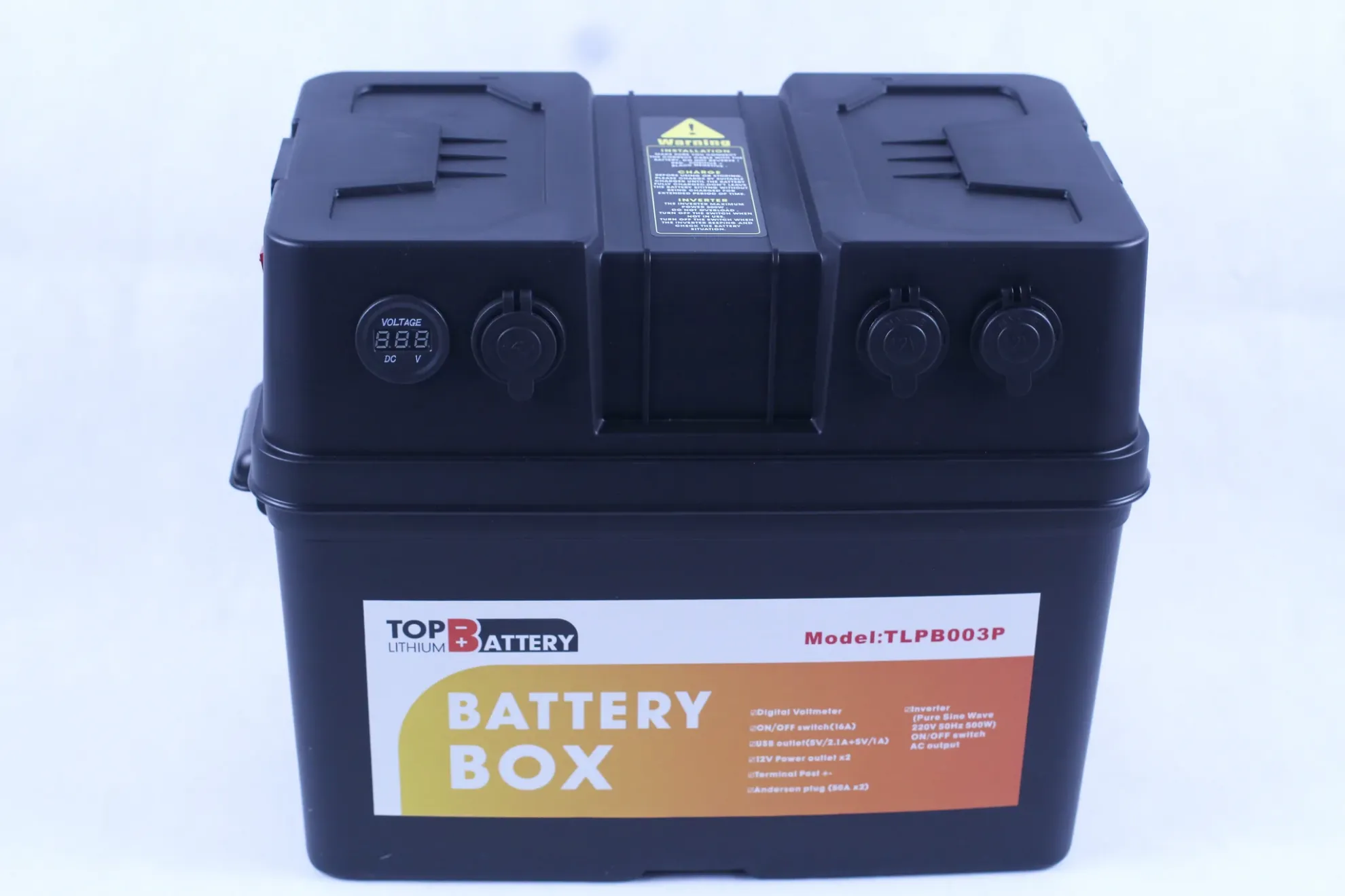

TopLi Battery Box with build-in 500W Pure Sine Wave Inverter

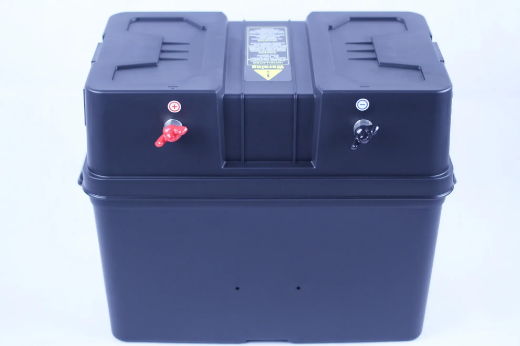

Negative(-) terminal

Belt

Positive(+) terminal

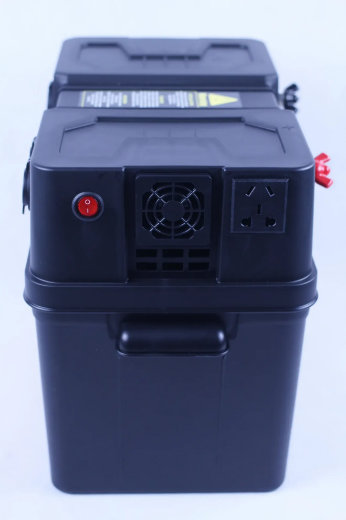

AC outlet (220V 50Hz, Rated power 500W)

Inverter switch ON/OFF

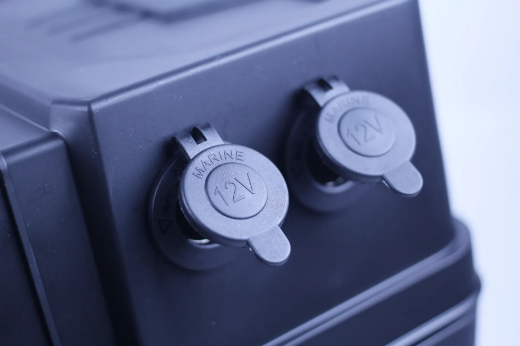

Cigarette socket*2(12-24V)

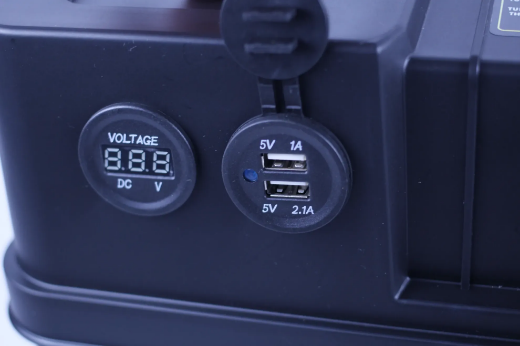

USB ports(5V/2.1A 5V1A)

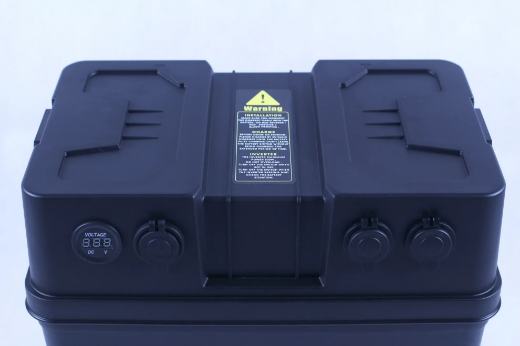

Digital voltmeter

Switch Reset/Off with 16A overload protection for USB and Cigarette socket

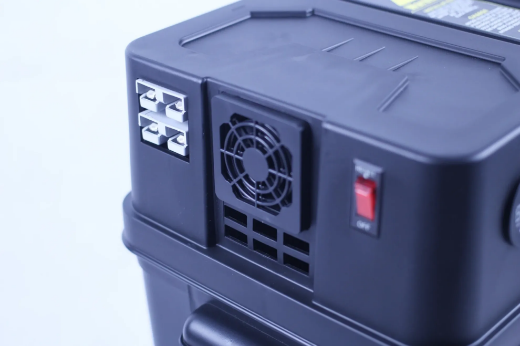

50A Anderson plugs *2 with 30A fuse

Dimensions: L 408 ×W 190 ×H230 mm

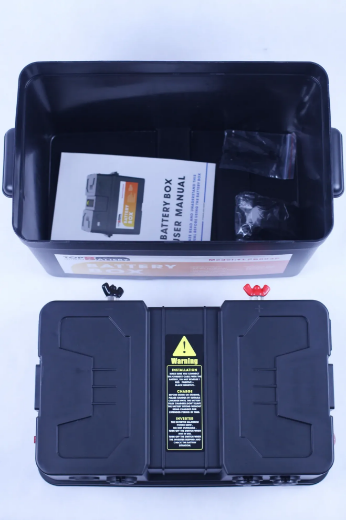

Battery maximum dimensions: up to L330 W190 H230mm

Material:  Ultra strong Polypropylene

Maximum battery weight:  35kg

Specification

12V-220V

Continuous power

500W

Peak power

1000W

Input voltage

12V

Output voltage

AC 220V+-10%

Output frequency

50+-1Hz

Output waveform

Pure sine wave

Average efficiency

>=90%

Working temperature

-25℃-50℃

Storage temperature

-20℃-85℃

Buzzer Alarm

Low-voltage protection

9.5V

4 Beeps - 5 seconds apart - 4 beeps again

Over-voltage protection

15V

3 Beeps - 5 seconds apart - 3 beeps again

Over-temperature protection

75+-5℃

2 Beeps - 5 seconds apart - 2 beeps again

Overload protection

110%~115%

Interval time for 1 sec with continuous beep

Short-circuit protection

Yes

Make sure you connect the correct cable with the battery, do not reverse! Red cable connect the POSITIVE, black cable connect the NEGATIVE. Otherwise it will brake the Inverter fuse and no WARRANTY
