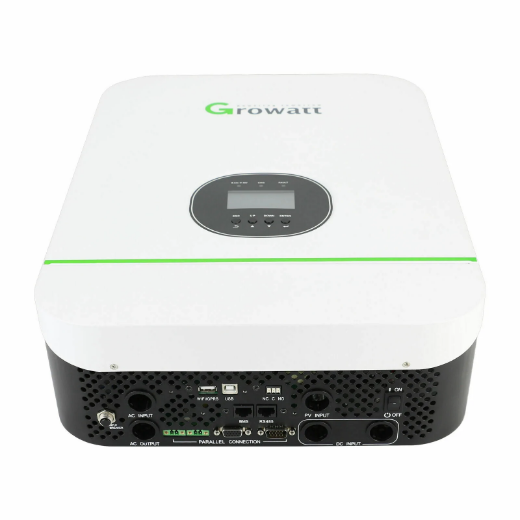

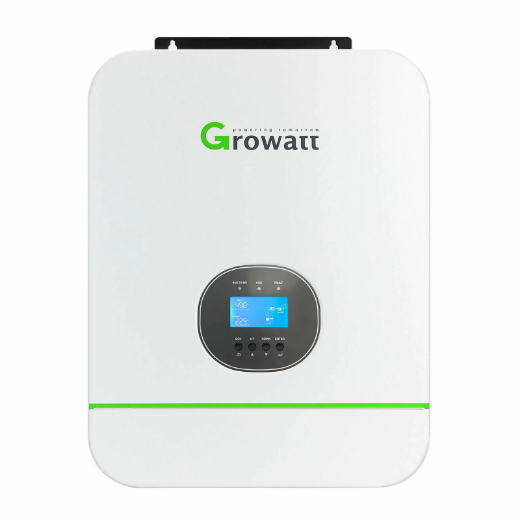

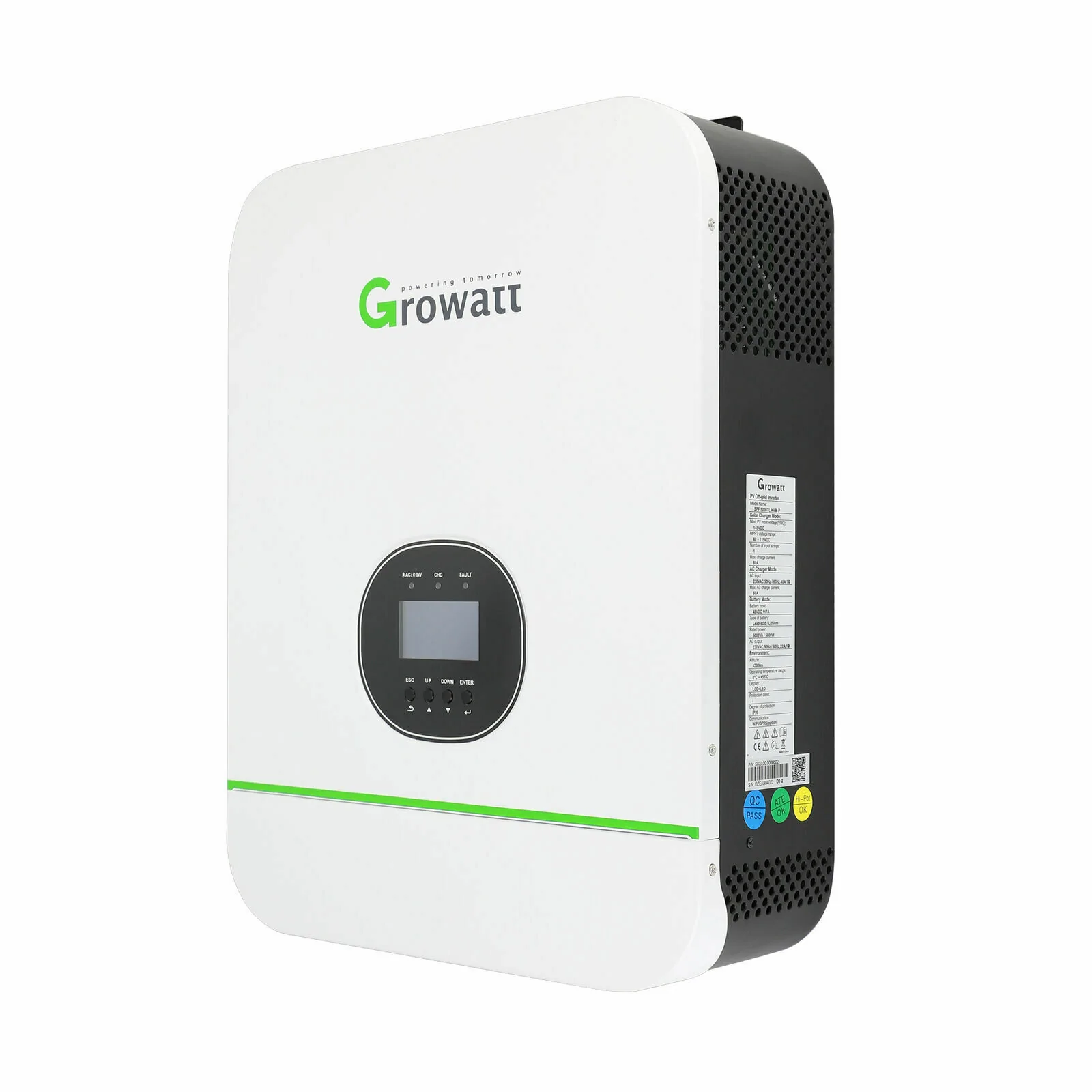

Growatt SPF 5000TL HVM off-Grid Solar Inverter

5kW Growatt SPF 5000TL HVM Isolated Inverter Features
Easy to use: Local graphic LCD display and four buttons, easier to operate LCD display. Compact design for easy installation

Improved security: Intelligent online service along with system operation. Intelligent battery management ensures battery safety. Complete protection for the entire system

Integrated MPPT charge controller

Optional WIFI monitoring (WIFI accessory required)

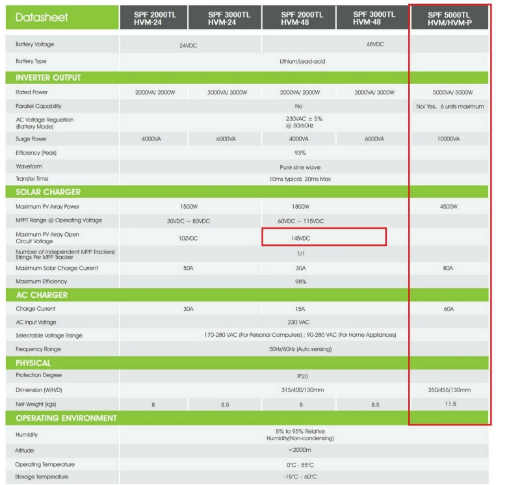

Inverter Output Specifications:

Power output: 5000 VA / 5000 W
Battery voltage requirement: 48V DC
Output: 230V AC pure sine wave
Peak efficiency of 93%
Solar Charger Specifications (Built-in):

Max PV array: 4500W
MPPT voltage range: 60V DC to 115V DC (Low voltage inverter)
Max open circuit voltage: 145V DC
Max solar charge current: 80A
Solar charger efficiency: 98%
AC Charger Specifications (Built-in):

Max AC charge current: 60A
Other information:

Dimensions: 130 x 350 x 455 mm
Weight : 11.5 kg
BMS communication port included. Compatible with The Sun Pays 100AH and 200AH lithium batteries with communication port.
Online monitoring with Growatt WiFi extension module .
IMPORTANT: THE CORRECT SETTINGS ON THE INVERTER WILL AID IN ENSURING OPTIMAL BATTERY LIFE. HERE IS A GUIDE ON INVERTER SETTINGS FOR THE LiFePO4 battery.
