Built-in MPPT solar charge controller
WIFI/GPRS remote monitoring
Built-in pure copper low-frequency transformer
Smart function and parameter setting via LCD button
Battery Voltage : 48VDC
Battery Type : Lithium/Lead-Acid
Inverter Output :
Rated Power : 12kW/12,000W
Surge Rating : 36kW /36,000W
Solar Charger
Maximum PV Charge Current : 120A
Maximum PV Array Power : 7,000W
of independent MPP trackers/strings per MPP tracker:2/1
AC Input
AC Input Voltage : 230VAC
Frequency Range : 50Hz/60Hz (Auto Sensing)
Maximum Charge Current : 100A

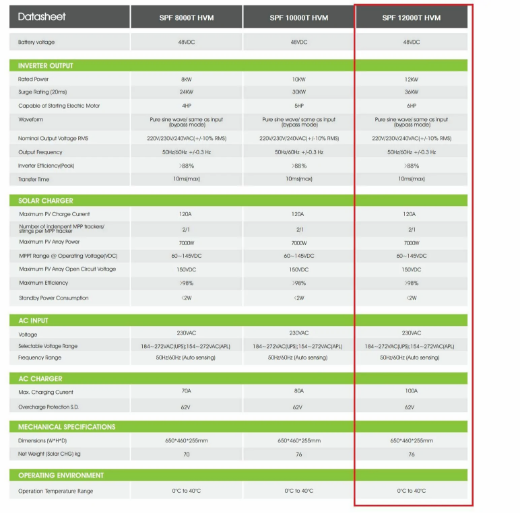

Products specifications
| Battery | |
| Battery Voltage | 48V DC |
| Inverter Output | |
| Rated Power | 12000W |
| Parallel Capacity | No |
| Surge Power | 36KW |
| Efficiency Peak | >88% |
| Solar Charger | |
| Maximum PV Array Power | 7000W |
| MPPT Range @ Operating Voltage | 60VDC ~ 145VDC |
| Max Solar Charge Current | 120A |
| AC Charger | |
| AC Charge Current | 100A |
| Physical | |
| Dimensions (W/H/D) | 650/460/255mm |
| Net Weight (Kgs) | 76 |
